REST API Reference

Ux4iot REST API

Ux4iot exposes a REST API that you can use in your security backend and in your own apps to manage subscription workflow. These APIs are used by ux4iot-react hooks to communicate with security backends and ux4iot.

We recommend using the ux4iot-admin-node library when using the REST API. At the moment, we only support typescript.

The only time you will need to directly use the ux4iot REST api is in your security backend to forward grants and in your DevOps to ensure the ux4iot is running correctly. All other resources are mainly used by the ux4iot-react library.

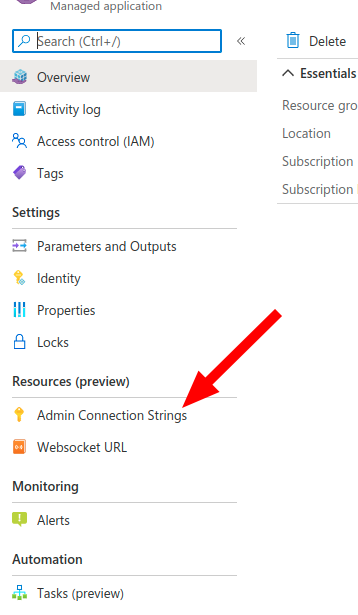

In order to use the REST API you will need the Shared-Access-Key of the Ux4iot. You can find it as part of the ux4iot connection string. Get the connection string by using the left sidebar in your ux4iot instance.

There are api resources to perform actions against the IoTHub. They are only available if you use an IoTHub service connection string in your ux4iot deployment parameters.

Common

Get the server version of ux4iot

GET https://ux4iot-xyz.westeurope.azurecontainer.io/version

This resource can always be requested without any credentials.

200: OK version

Get the current status of ux4iot

GET https://ux4iot-xyz.westeurope.azurecontainer.io/status

Helpful when you want to ensure the correct deployment of ux4iot.

200: OK OK

503: Service Unavailable Still initializing

500: Internal Server Error EventHub connection string misformed. Please check the iotHubEventHubConnectionString environment variable in your deployment file for ux4iot

500: Internal Server Error IoTHub connection string misformed. Please check the iotHubServiceConnectionString environment variable in your deployment file for ux4iot.

Set the log level of ux4iot

PUT https://ux4iot-xyz.westeurope.azurecontainer.io/logLevel/:level

Path Parameters

Name	Type	Description
level*	String	'error' | 'warn' | 'info' | 'verbose' | 'debug'

Headers

Name	Type	Description
Shared-Access-Key*	String

204: No Content

400: Bad Request Unknown log level

Sessions

Opens a new session in ux4iot

POST https://ux4iot-xyz.westeurope.azurecontainer.io/session

200: OK

{
    sessionId: "string"
}

Delete a session by ID

DELETE https://ux4iot-xyz.westeurope.azurecontainer.io/sessions/:sessionId

Path Parameters

Name	Type	Description
sessionId*	String	The ID of the session to delete

Headers

Name	Type	Description
Shared-Access-Key*	String	The shared-access-key of the the connection string of your ux4iot instance

204: No Content

401: Unauthorized

Delete all sessions

DELETE https://ux4iot-xyz.westeurope.azurecontainer.io/sessions

Headers

Name	Type	Description
Shared-Access-Key*	String	The shared-access-key of the the connection string of your ux4iot instance

204: No Content

401: Unauthorized

Grants

Grants authorize a session to subscribe to resources, patch desired properties and execute direct methods.

GrantRequest Types

GrantRequest types only differ in the "type" property. For Telemetry and DirectMethods you can add an additional property to restrict specific telemetry keys or direct methods respectively.

type DeviceTwinGrantRequest = { sessionId: string; deviceId: string; type: 'deviceTwin'; }
type ConnectionStateGrantRequest = { sessionId: string; deviceId: string; type: 'connectionState'; }
type D2CMessageGrantRequest = { sessionId: string; deviceId: string; type: 'd2cMessages'; }
type DesiredPropertiesGrantRequest = { sessionId: string; deviceId: string; type: 'desiredProperties'; }
type TelemetryGrantRequest = {
  sessionId: string;
  deviceId: string;
  type: 'telemetry';
  telemetryKey: string | null;
}
type DirectMethodGrantRequest = {
  sessionId: string;
  deviceId: string;
  type: 'telemetry';
  directMethodName: string | null;
}

Forward a grant

PUT https://ux4iot-xyz.westeurope.azurecontainer.io/grants

Add a grant for the sessionId contained in the grant.

Headers

Name	Type	Description
Shared-Access-Key*	string	The Shared Access Key used for authentication

Request Body

Name	Type	Description
telemetryKey	string | null	available on type: "telemetry" used to grant a specific telemetryKey. use null for all telemetry of the device
deviceId*	string	The IoT Hub device ID
sessionId*	string	The sessionId for which the grant is requested
type*	string	'telemetry' | 'deviceTwin' | 'connectionState' | 'desiredProperties' | 'directMethod' | 'd2cMessages'
directMethodName	string	available on type: 'directMethod' used to grant a specific directMethod. use null for all direct methods of the device

204: No Content

NO CONTENT

400: Bad Request unknown grant type

unknown grant type

401: Unauthorized no or invalid shared access key header

Unauthorized: {error description}

404: Not Found no such sessionId

400: Bad Request Grant unavailable (when IoT Hub API is disabled)

Revoke a grant

DELETE https://ux4iot-xyz.westeurope.azurecontainer.io/grants

Revoke the grant given

Headers

Name	Type	Description
Shared-Access-Key*	string	The Shared Access Key used for authentication

Request Body

Name	Type	Description
deviceId*	string	The device for which to revoke the grant
type*	string	The grant type to revoke
sessionId*	string	The session ID that the grant belongs to
telemetryKey	string | null	available on type: "telemetry" used to grant a specific telemetryKey. use null for all telemetry of the device
directMethodName	string | null	available on type: 'directMethod' used to grant a specific directMethod. use null for all direct methods of the device

204: No Content

400: Bad Request unknown grant type

400: Bad Request Grant unavailable (when IoTHub API is disabled)

401: Unauthorized no or invalid shared access key header

404: Not Found no such sessionId

Subscriptions

A subscription request lets a session subscribe to live data from the EventHub. Similar to GrantRequests, there are multiple SubscriptionRequest types:

export type TelemetrySubscriptionRequest = {
  sessionId: string;
  deviceId: string;
  type: 'telemetry';
  telemetryKey: string | null;
};
export type DeviceTwinSubscriptionRequest = { sessionId: string; deviceId: string; type: 'deviceTwin'; };
export type ConnectionStateSubscriptionRequest = { sessionId: string; deviceId: string; type: 'connectionState'; };
export type D2CMessageSubscriptionRequest = { sessionId: string; deviceId: string; type: 'd2cMessages'; };

Subscribe to live data

PUT https://ux4iot-xyz.westeurope.azurecontainer.io/subscription

Request Body

Name	Type	Description
sessionId*	string
deviceId*	string
type*	string	one of 'telemetry' | 'deviceTwin' | 'connectionState' | 'd2cMessages'
telemetryKey	string | null	Only available on type: "telemetry". use null for subscribing to all telemetry of a device

204: No Content

403: Forbidden subscription request not granted

404: Not Found No such sessionId

400: Bad Request unknown subscription type

Unsubscribe from live data

DELETE https://ux4iot-xyz.westeurope.azurecontainer.io/subscription

Request Body

Name	Type	Description
sessionId*	string
deviceId*	string
type*	string	one of 'telemetry' | 'deviceTwin' | 'connectionState' | 'd2cMessages'
telemetryKey	string | null	Only available on type: "telemetry". use null for subscribing to all telemetry of a device

204: No Content

403: Forbidden subscription request not granted

404: Not Found No such sessionId

400: Bad Request unknown subscription type

Bulk subscribe to multiple devices

PUT https://ux4iot-xyz.westeurope.azurecontainer.io/subscriptions

You have to send a list of subscription requests as body. If this list contains an invalid subscription request, the entire request will fail without applying any subscription requests. If you have a missing grant for some of the subscription requests, they will be skipped.

The response will contain a body that gives you the list of applied subscription requests. If you have valid grants for all subscription requests, the response body will match your request body.

200: OK added SubscriptionRequests[]

400: Bad Request Not all elements in the request body are subscription requests

Bulk unsubscribe from multiple devices

DELETE https://ux4iot-xyz.westeurope.azurecontainer.io/subscriptions

You have to send a list of subscription requests as body. If this list contains an invalid subscription request, the entire request will fail without removing any subscription requests. If you have a missing grant for some of the subscription requests, they will be skipped.

The response will contain a body that gives you the list of applied subscription requests. If you have valid grants for all subscription requests, the response body will match your request body.

200: OK removed SubscriptionRequests[]

400: Bad Request Not all elements in the request body are subscription requests

Last Values

Read last telemetry values for device

GET https://ux4iot-xyz.westeurope.azurecontainer.io/lastValue/:deviceId/:telemetryKey?

This endpoint both supports requests with sessionId header or requests with Shared-Access-Key header.

If you use a sessionId, then it will be check whether a grant for the device telemetry exists before the last values are returned.

If you use a Shared-Access-Key, then any last value will be returned, without grants being checked.

Path Parameters

Name	Type	Description
deviceId*	String
telemetryKey	String	if omitted, returns all last values of the device

200: OK Response structure depends on existence of telemetryKey

// telemetryKey provided
{
  deviceId: string;
  data: {
    [telemetryKey]: any;
  }
  timestamp: string; // iso date
}

// telemetryKey not provided
{
  deviceId: string;
  data: {
    [telemetryKey]: {
      value: any;
      timestamp: string; // iso date
    }
  }
  timestamp: '';
}

404: Not Found No last telemetry found

401: Unauthorized Provide either a Shared-Access-Key or a sessionId header

403: Forbidden Forbidden to read last value of device: missing grant

404: Not Found No such sessionId

403: Forbidden Forbidden to read last value of device: invalid shared-access-key

Remove all last values for a device

DELETE https://ux4iot-xyz.westeurope.azurecontainer.io/lastValue/:deviceId

This endpoint both supports requests with sessionId header or requests with Shared-Access-Key header.

If you use a sessionId, then it will be check whether a grant for the device telemetry exists before the last values are returned.

If you use a Shared-Access-Key, then any last value will be returned, without grants being checked.

Path Parameters

Name	Type	Description
deviceId*	String
telemetryKey	String	if omitted, returns all last values of the device

200: OK Response structure depends on existence of telemetryKey

// telemetryKey provided
{
  deviceId: string;
  data: {
    [telemetryKey]: any;
  }
  timestamp: string; // iso date
}

// telemetryKey not provided
{
  deviceId: string;
  data: {
    [telemetryKey]: {
      value: any;
      timestamp: string; // iso date
    }
  }
  timestamp: '';
}

401: Unauthorized Provide either a Shared-Access-Key or a sessionId header

403: Forbidden Forbidden to read last value of device: missing grant

404: Not Found No such sessionId

403: Forbidden Forbidden to read last value of device: invalid shared-access-key

Read last device twin for device

GET https://ux4iot-xyz.westeurope.azurecontainer.io/deviceTwin/:deviceId

Returns the last device twin for a device, if you have provided a IoTHub service connection string in your ux4iot deployment parameters.

Path Parameters

Name	Type	Description
deviceId*	string

200: OK LastValueResponse<DeviceTwin>

{
  deviceId,
  data: DeviceTwin
  timestamp: string // iso date
}

404: Not Found No last devicetwin found

400: Bad Request IoT Hub API disabled, cannot invoke direct method

401: Unauthorized Provide either a Shared-Access-Key or a sessionId

403: Forbidden Forbidden to read last value of device: missing grant

403: Forbidden Forbidden to read last value of device: invalid shared-access-key

Read last connection state for device

GET https://ux4iot-xyz.westeurope.azurecontainer.io/connectionState/:deviceId

Returns the last connection state for a device.

If you have provided a IoTHub service connection string in your ux4iot deployment parameters and if there is no connection state found in the ux4iot's cache, ux4iot will also check the IoTHub for the connected property in the device twin for a last connection state.

Read more about the connection state concept here

Path Parameters

Name	Type	Description
deviceId*	string

200: OK LastValueResponse<boolean>

{
  deviceId,
  data: DeviceTwin
  timestamp: string // iso date
}

404: Not Found No device found

400: Bad Request IoT Hub API disabled, cannot invoke direct method

401: Unauthorized Provide either a Shared-Access-Key or a sessionId

403: Forbidden Forbidden to read last value of device: missing grant

403: Forbidden Forbidden to read last value of device: invalid shared-access-key

IoTHub Methods

These api resources are only available if you provided an IoTHub service connection string in your ux4iot deployment parameters.

Direct Method

We use the IoTHub parameters that you will need to send in the direct method request:

type DirectMethodRequestBody = {
  deviceId: string;
  methodParams: {
    // The name of the method to call on the device.
    methodName: string;
    // The method payload that will be sent to the device.
    payload?: any;
    // The maximum time a device should take to respond to the method.
    responseTimeoutInSeconds?: number;
    // The maximum time the service should try to connect to the device before declaring the device is unreachable.
    connectTimeoutInSeconds?: number;
  }
}

When authorized and grants are set, ux4iot will send a request to IoTHub to execute the requested direct method. We forward the HTTP response codes from the IoTHub.

Executes a direct method on an IoTHub device

POST https://ux4iot-xyz.westeurope.azurecontainer.io/directMethod

Provide a body containing the following

Request Body

Name	Type	Description
deviceId*	String
methodParams*	DeviceMethodParams

200: OK IoTHub Response: success

{
    "status" : 201,
    "payload" : {...}
}

404: Not Found No such sessionId

403: Forbidden Forbidden

400: Bad Request IoT Hub API disabled, cannot invoke direct method

404: Not Found IoTHub Response: device ID is invalid

504: Gateway Timeout IoTHub Response: device not responding to a direct method

Patch Desired Properties

Apply a patch to desired properties of a device using the following request body:

type PatchDesiredPropertiesRequestBody = {
  deviceId: string;
  desiredPropertyPatch: Record<string, any>
}

Executes a patch of desired properties on a device twin

PATCH https://ux4iot-xyz.westeurope.azurecontainer.io/deviceTwinDesiredProperties

Request Body

Name	Type	Description
deviceId*	String
desiredPropertyPatch*	Record<string, any>

403: Forbidden Forbidden

404: Not Found No such sessionId

400: Bad Request IoT Hub API disabled, cannot invoke direct method

500: Internal Server Error IoTHub Response: error

200: OK

{
   status: number;
   payload: Record<string, any>;
}
